DOL 112-PT100 temperature sensor
| Quantity | Unit price |
|---|---|
| To 4 |
€24.30*
|
| To 19 |
€21.87*
|
| From 20 |
€19.44*
|
Available, delivery time: 1-3 days
Manufacturer item no.: 140382
DOL 112-PT100 is a simple cost-effective temperature sensor. The sensor is a robust sensor with the high quality known from other dol-sensors’ sensor solutions. Thus, DOL 112-PT100 is well suited for use in environments where a sturdy design is required.
The temperature sensor can operate in temperatures between minus 40 and plus 100 oC and can be used for measuring both inside and outside temperatures.
DOL 112-PT100 is IP 68 protected, which means that it is dust tight and has total protection against water ingress, up to and including complete submersion below one meter and for more than 30 minutes.

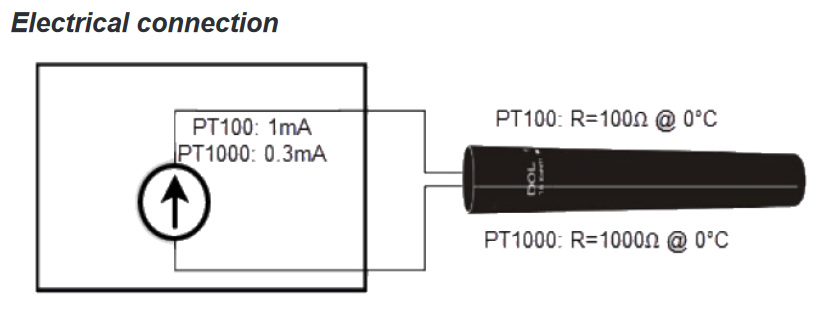

The sensor has an accuracy of +0.5 oC and comes with a 2-wire 1.4-meter ø5 mm cable.
TECHNICAL DATA
electric
Measuring range -40°C to +100°C
Accuracy ±0.5°C
Tolerance class B, F0.3
Time constant T63 5 min. at 0.5 m/s air speed
Environment
Ambient temperature, operation and storage -40°C to +100°C
Protection class IP 68

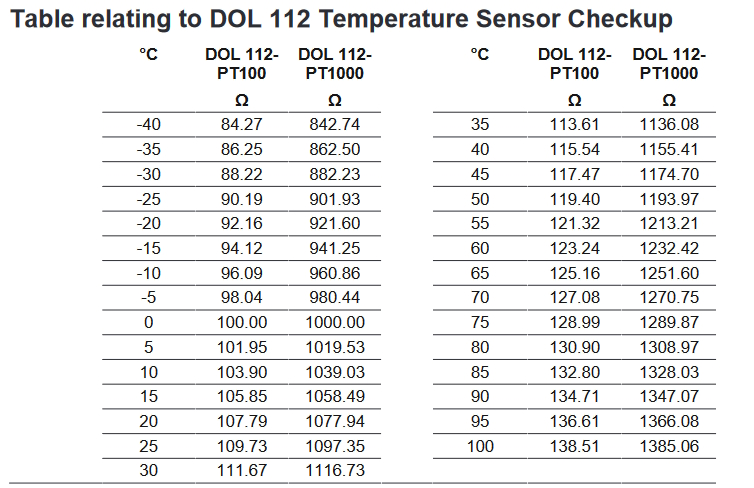

sensor properties
-40℃ 84.27Ω
0°C 100Ω
60℃ 123.24Ω
sensor data
Two-core cable, length 1.40 m
Sensor Ø14, length 75mm
Illustration similar
| Manufacturer item no.: | 140382 |
|---|---|
| Output signal: | 84-139 Ω |
| Sensor type: | Temperatur |
| Messbereich: | -40 / +100 °C |
