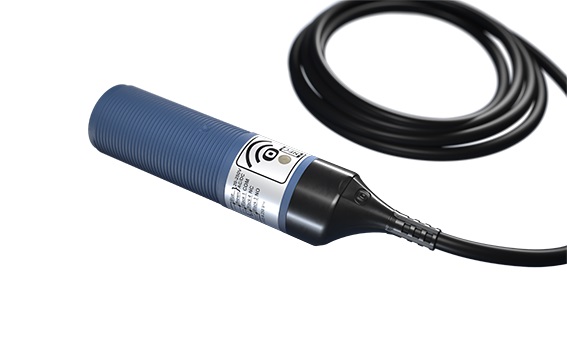

iDOL 44RG capacitive sensor 20-280V AC/DC

Manufacturer item no.: 100641

The iDOL 44RG Model Model 100641 is the future of feed sensors. Based on the DOL 44RG, the iDOL 44RG allows setting up and adjusting parameters as well as configuration via a wireless interface. Combined with the accompanying iDOL app on your smartphone, the iDOL 44RG is both easy to use and more flexible than any other capacitive feed sensor. Thanks to the iDOL app, the user has more parameters available than a traditional sensor with two trimmers that need to be operated using a screwdriver. The result is a more flexible sensor that can be adapted to the user's individual needs. At the same time, the iDOL 44RG sensor is easier to use and understand as the parameter setup is done using a user-friendly and easy-to-understand interface. The result is a unique sensor with more features that is still easier to use.

TECHNICAL DATA

    Model:100641
    Mains voltage: 20-280V AC/DC
    Frequency:47-63Hz
    Max. voltage of the relay switch: 250 volts AC
    Max. power of the relay switch: Ohmic load: 5 A / Inductive load: 2 A
    Safety: Relay switch and mains voltage are galvanically isolated. Test voltage 4 kV AC
    Activation distance: Adjustable between 0 and 15 mm depending on the material.
    Time delay: ON: Adjustable between 0 and 600 seconds / OFF: Adjustable between 0 and 600 seconds
    Protection class: IP 69k. NEMA 1, 3, 4, 6, 12, 13
    Ambient temperature, operating: -20 to +70 °C (-4 to +158 °F) / UL508: -20 to +65 °C (-4 to +149 °F)
    Ambient temperature, storage: -30 to +80 °C (-22 to +176 °F)

Illustration similar
