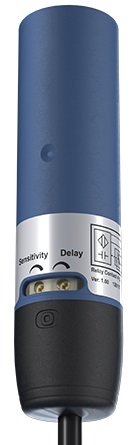

iDOL 28R 20-280V AC/DC
| Quantity | Unit price |
|---|---|
| To 4 |
€120.70*
|
| To 9 |
€108.63*
|
| To 19 |
€102.59*
|
| From 20 |
€96.56*
|
Available, delivery time: 1-3 days
Manufacturer item no.:100697
The iDOL 28R is a capacitive relay sensor for the detection of feed, grain and solids in a feeding system. The sensor has a relay output with direct switching. The sensor has a white LED to illuminate the feeding bowl. A capacitive relay sensor is typically used as an empty, full and level indicator in tanks, silos and containers. The powerful integrated relay controls many functions directly. iDOL 28R series of capacitive relay sensors are robust and easy to operate. The SmartAdjust app makes it easier to change the settings of the product parameters depending on the model. The settings of the iDOL 28R can be adjusted using the SmartAdjust App, which can be downloaded from the Google Play Store.
TECHNICAL SPECIFICATIONS
- Model: 100697
- Mains Voltage: 20-280V AC/DC
- Frequency: 47-63Hz
- Max. voltage of the relay switch: 250 volts AC
- Max. power of the relay switch: resistive load: 5 A ;
- Inductive load: 2 A
- Min. relay current 100 mA at 12 V DC
- Safety: Relay switch and mains voltage are galvanically isolated. Test voltage 4kV AC
- Activation distance: Adjustable between 0 and 20 mm depending on the material. Factory setting for grain
- Time Delay: Adjustable between 0 and 600 seconds
- Degree of protection: IP 69k. NEMA 1, 3, 4, 6, 12, 13
- Ambient temperature, operation: -20 to +70 °C (-4 to +158 °F)
- Ambient temperature, storage: -30 to +80 °C (-22 to +176 °F)
- Length: 117mm (4.61”)
- Diameter: 30mm (1.16”)
- Cable: 5 × 0.5 mm2 (5 × AWG20) 2 m (6.6 ft)
Illustration similar
| Manufacturer item no.: | 100697 |
|---|---|
| Supply voltage: | 20-280 V AC/DC |
| Sensor type: | 5 Ader Relay NO/NC |
| Switching delay: | 0-3600s Aus, 0-3600s Ein |
| Surface & Ø: | Smooth Ø 30 mm |
