Ventilation duct K 30 for grain stores, length 0.86 m

Name: Ventilation duct K 30 for grain stores, length 0.86 m
SKU: 4701
Price: 15.9 EUR
Availability: InStock

€15.90*

Prices excl. VAT plus shipping costs

Available, delivery time: In stock

Product number: 4701

Product information "Ventilation duct K 30 for grain stores, length 0.86 m"

Our semi-circular ventilation ducts are suitable for grain, rapeseed and potatoes.
Overhead ventilation with cooling ducts is currently the most common way of introducing air. This
The form of ventilation is one of the most cost-effective variants to purchase.
A full range of semicircular ducts made of galvanized perforated sheet steel,
allows the complete construction of an effective ventilation system.
The perforation is suitable for rapeseed, grain and potatoes.

Our semicircular ventilation ducts, also known as K 30 cooling ducts, are designed for a bulk height of up to 12m.

Advantages:
• inexpensive solution for professional ventilation
• easy to lay
• many add-on parts for many bearing types
• also a version for rapeseed, potatoes and wood chips

Length 0.86 m
Width 0.48m
Height 0.24 m
Material galvanized

Laying distance
Filling height / laying distance
2.0m / 2.00m
2.5m / 2.25m
3.0m / 2.50m
3.5m / 2.75m
4.0m / 3.00m
4.5m / 3.25m
5.0m / 3.50m
5.5m / 3.75m
6.0m / 4.00m
6.5m / 4.50m
7.0m / 5.00m

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Be the first to share your insights.

Verwandte Produkte

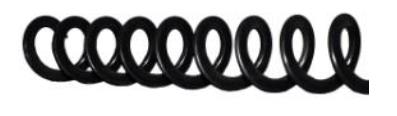

Conveyor spiral FSP 127

Price per m

€13.30*

Cover tarpaulin for loading auger DS 150

Cover tarpaulin for inlet funnel

€61.00*

Drive head FSP 127

with outlet Jacob 150mmwithout motor

€129.55*

Expanding shaft with plain bearing FSP 127

for spiral conveyor FSP 127

€115.90*

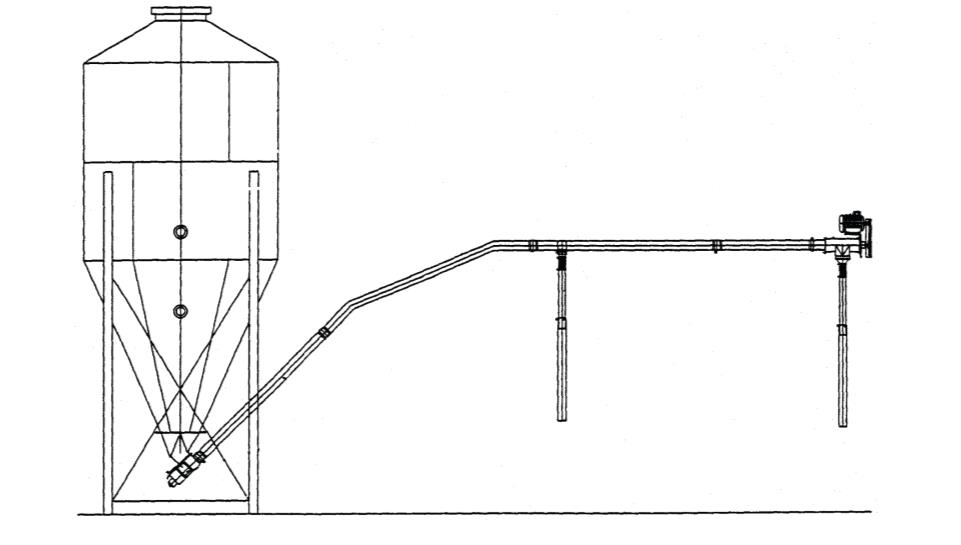

Feed pellet spiral FSP 127 length up to 24 m

Complete set Ø 127 mm with motor 1.1 kW and controlmaximum length with engine power 1.1 kw is 24 m!!! Please select length !!! 6 m are delivered as standard

Spirale FSP 127 bis 24 m: X

€1,434.50*

Galvanized loading auger with hydraulic drive, type DS 150

Material galvanized steel For mounting on wagons, fertilizer spreaders and seed drillsStandard:Hydraulic motor at the top, two hydraulic hoses 4.00 m with coupling, attachments for the trolley, perforated rail for adjusting the inclination and transport lock, inlet funnel, drain hose 1.00 m, cleaning opening, 3-way switch valveType DS 150Tube diameter 150 mmspout 150 mmLength 3.00 mOutput 35 t/h at 45° inclination

€1,245.00*

Gear motor 1.1 kW - 200 rpm FSP 127

with drive shaft and yoke bolt FSP 127

€578.00*

Intake hopper FSP 127

for spiral conveyor FSP 127with inspection openingMaterial galvanized steel

€87.20*

Motor protection switch 1.1 kW for FSP 127

for signaling switch DOL 41R

€4.90*

Motor protection switch 1.1 kW for FSP 127

Hand-O-Automatic switch for 1.1 kW- Connection for 2 signaling switches DOL 41R 230 V for empty and full signal operation

€200.00*

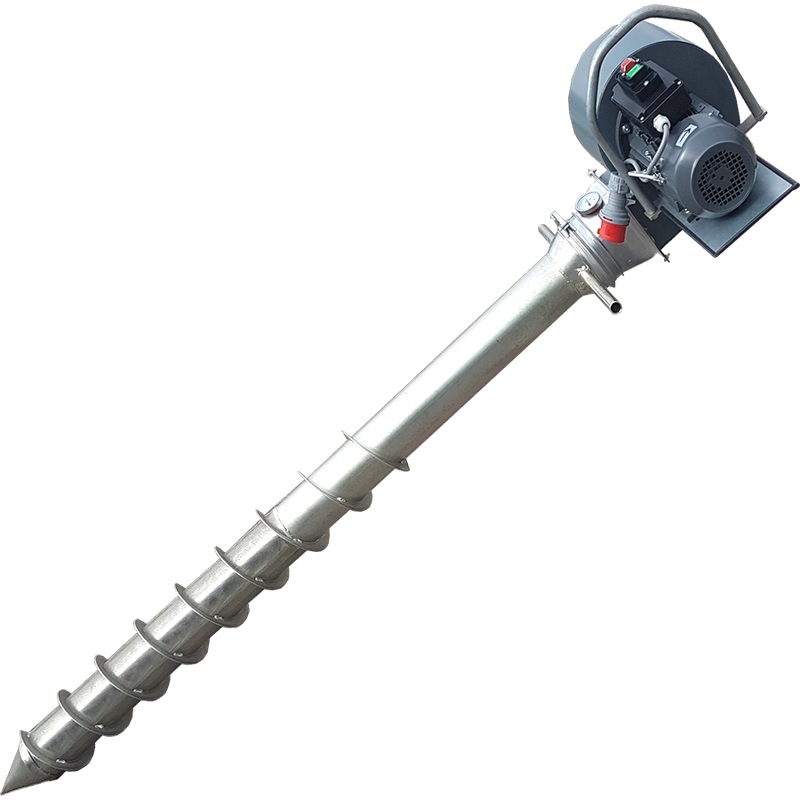

Ventilation spear / ventilation rocket ECO+ for grain storage
