DOL 44R capacitive sensor 10-30V AC/DC

Quantity Unit price
To 4
€99.46*
To 9
€89.51*
To 19
€84.54*
From 20
€79.57*

Available in 5 days, delivery time 1-3 days

Product number: 1276
Product information "DOL 44R capacitive sensor 10-30V AC/DC "

Manufacturer item no.: 100609

The DOL 44 is a complete 30mm series of capacitive feed sensors with relay output. A capacitive relay sensor is typically used as an empty, full and level indicator in tanks, silos and bins. The powerful built-in relay means it can control many functions directly. The sensors have robust functionality and are easy to use. The settings can be easily changed with a small screwdriver using two trimmers. DOL 44R has a high immunity to noise from electrical communications equipment (e.g. from mobile phones) and transients (e.g. from motors or switching devices). The protection class IP69K offers the greatest possible protection against water and other liquids, e.g. B. when cleaning livestock stalls. DOL 44R is available in a variety of versions.

  TECHNICAL SPECIFICATIONS

  • Model:100609
  • Supply voltage: 10-30V AC/DC
  • Frequency: 47 - 63 Hz relay switch max.
  • Voltage: 250 volts AC Relay Switch Max Current: Resistive Load: 5A Inductive Load: 2A
  • Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC
  • Activation distance: Adjustable 0 - 15 mm depending on the material. Discontinued by the manufacturer for grain
  • Time Delay: Adjustable 0 - 600 sec. Factory set at 30 sec
  • Degree of protection: IP69k. NEMA 1, 3, 4, 6, 12, 13
  • Ambient temperature, operation: -20 °C - +70 °C (-4 °F - +158 °F)
  • Ambient temp., operation UL 508: -20 °C - +65 °C (-4 °F - +149 °F)
  • Ambient temperature, storage: -30 °C - +80 °C (-22 °F - +176 °F)

Illustration similar

Manufacturer item no.: 100609
Supply voltage: 10-30 V AC/DC

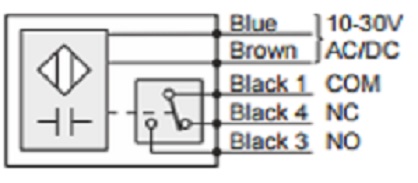

Sensor type: 5 Ader Relay NO/NC
Switching delay: 0-600s Aus
Surface & Ø: Smooth Ø 30 mm
