DOL 44R-33 capacitive sensor 90-265V AC

Manufacturer Item No.: 100300

The DOL 44R-33 is a complete 33mm series of capacitive
Feed sensors with relay output. The sensors have a
robust functionality and are easy to use. The settings
Can be easily removed with a small screwdriver using two trimmers
change. DOL 44R has a high level of immunity to interference
Noise from electrical communication technology (e.g. from mobile phones)
and transients (e.g. from motors or switching devices). The
Protection class IP69K offers the greatest possible protection against water and others
liquids, e.g. B. when cleaning livestock stalls.
DOL 44R is available in a variety of versions including the DOL
44RH with integrated heater for refrigeration and applications
with high humidity and the DOL 44RT is used to collect feed in pipes.

 TECHNICAL SPECIFICATIONS

• Model:100300

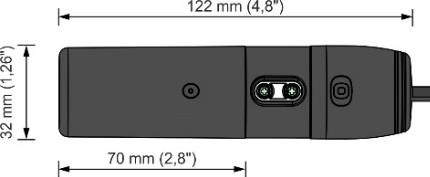

  Surface conical Ø32 up to Ø33 mm
• Supply voltage: 90-265V AC
• Frequency: 50 - 60 Hertz
• Consumption: 2VA
• Relay Switch Max Voltage: 250 VAC
• Relay switch max. power AC: 5 A at cos φ = 1, 2 A at cos φ = 0.8, 0.35 A at cos φ = 0.4
• Relay switch max. power DC: 5 A at 0 - 30 V DC
• Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC
• Activation distance: Adjustable 0 - 15 mm depending on the material. Factory setting for grain
• Off-Delay: Adjustable 0-600 sec. Factory setting for 30 sec.
• Protection class: IP69K, NEMA 1, 3, 4, 6, 12, 13
• Ambient temperature, operation: -20 °C to +70 °C / -4 °F to +158 °F

Other variants available on request

Is compatible with the following products: VC11RN, VC11RT, VC12RN, VC12RT

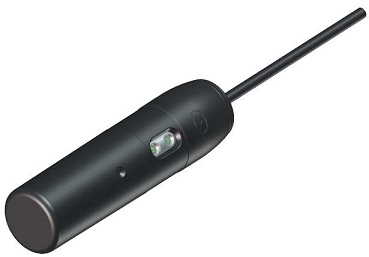

Illustration similar
