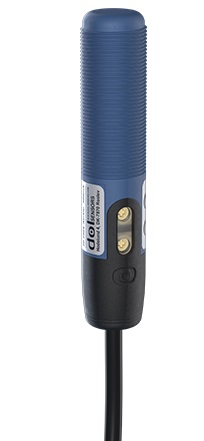

DOL 26 CA-P-M18-NF-CA-SCR-B-2T
| Quantity | Unit price |
|---|---|
| To 2 |
€94.09
|
| To 9 |
€84.68
€94.09
(10% saved)
|
| From 10 |
€75.27
€94.09
(20% saved)
|
Available, delivery time: 1-3 days
Product information "DOL 26 CA-P-M18-NF-CA-SCR-B-2T "
Manufacturer Item No.: 105104
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
- Model:105104
Sensor Type SCR
Output Type Break
Surface M18 Thread - Mains voltage (Ue): 20-280VAC / VDC
- Frequency (fe): 47 - 63 Hz
- Max Current (Ie): 500mA RMS / mA DC
- Load dip current: < 2.5A at 30 msA
- Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
- Min. ON current (Im):< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC
- OFF current (Ir): < 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
- Voltage drop, output ON (Ud): < 6 V RMS / V DC
- Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
- Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
- Degree of protection: IP69k (DIN 40050-9)
| Manufacturer item no.: | 105104 |
|---|---|
| Supply voltage: | 20-280 V AC/DC |
| Sensor type: | 2 Ader SCR NC (B) |
| Switching delay: | 0-60s Ein, 0-600s Aus |
| Surface & Ø: | Thread M18 |
