DOL 26 CA-P-M18-NF-CA-PNP-2-2T
| Quantity | Unit price |
|---|---|
| To 2 |
€92.20*
|
| To 9 |
€82.98*
|
| From 10 |
€73.76*
|
Available, delivery time: 1-3 days
Manufacturer item no.: 105119
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
- Model:105119
- Mains voltage (Ue): 20-280VAC / VDC
- Frequency (fe): 47 - 63 Hz
- Max Current (Ie): 500mA RMS / mA DC
- Load dip current: < 2.5A at 30 msA
- Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
- Min. ON current (Im):< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC
- OFF current (Ir): < 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
- Voltage drop, output ON (Ud): < 6 V RMS / V DC
- Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
- Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
- Degree of protection: IP69k (DIN 40050-9)

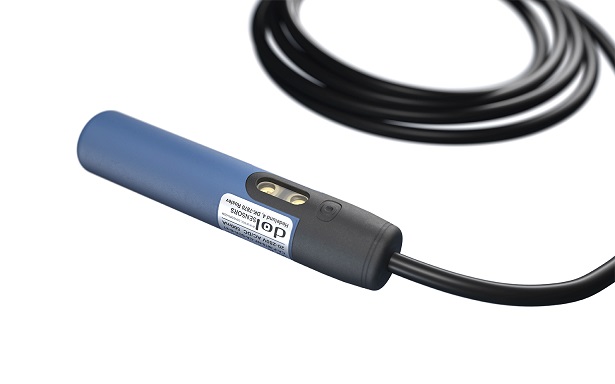

Illustration similar
| Manufacturer item no.: | 105109 |
|---|---|
| Supply voltage: | 20-280 V AC/DC |
| Sensor type: | 2 Ader SCR NC (B) |
| Switching delay: | 0-600s Ein |
| Surface & Ø: | Smooth Ø 18 mm |
