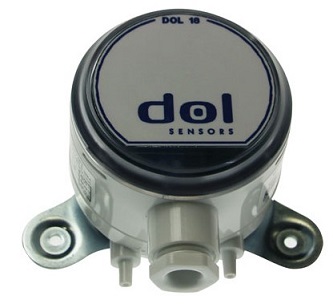

DOL 18 electric sub-pressure sensor 100 Pa
| Quantity | Unit price |
|---|---|
| To 4 |
€189.52*
|
| To 9 |
€170.57*
|
| From 10 |
€151.62*
|
Available, delivery time: 1-3 days
Manufacturer Item no. No.: 140233
The electronic vacuum sensor DOL 18 is used in conjunction with climate and production computers for climate monitoring, among other things. The electronic pressure sensor can, for example. used for house pressure monitoring. The electronic under pressure sensor DOL 18 can be used to read/control the pressure in the barn and trigger an alarm when the pressure is too low or too high. In addition, the electronic vacuum sensor DOL 18 is often used for pressure control in central ducts. For example in connection with air purification systems.
TECHNICAL SPECIFICATIONS
- Pressure limits: max. operating 3.6 hp; Burst 6 hp
- Stability: +/- 1% BFS / year

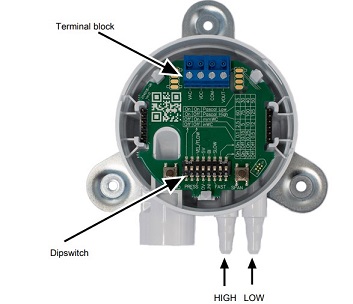

- Response time: DIP switch setting Temperature Instant or 3 sec.
- Power consumption: 25mA max
Electrical connections:
- 2-wire: 4-20mA
- 3-wire: 0-10 (0-5) V
- 4-wire: 4-20mA 0-10 (0-5) V
- Electrical entry: 1/2˝ NPS threaded cable gland for cables Ø 5 - 9 mm
- Hose connection Hose with inner diameter: 1/8", 1/16", 1/4", 5mm, 6mm
- Temperature, storage: -20 – 70°C
- Temperature, operation: -20 – 70°C
- IP class: IP66
- NEMA 4x
| Manufacturer item no.: | 140233 |
|---|---|
| Output signal: | 0-5 V, 0-10 V, 4-20 mA |
| Supply voltage: | 10-36 V DC, 22 - 33 V AC |
| Sensor type: | Unterdruck |
| Messbereich: | max 1 psi |
