DOL 104 humidity sensor 0-10V
| Quantity | Unit price |
|---|---|
| To 4 |
€201.75*
|
| To 9 |
€181.56*
|
| From 10 |
€161.40*
|
Available in 5 days, delivery time 1-3 days
Manufacturer item no.: 140263

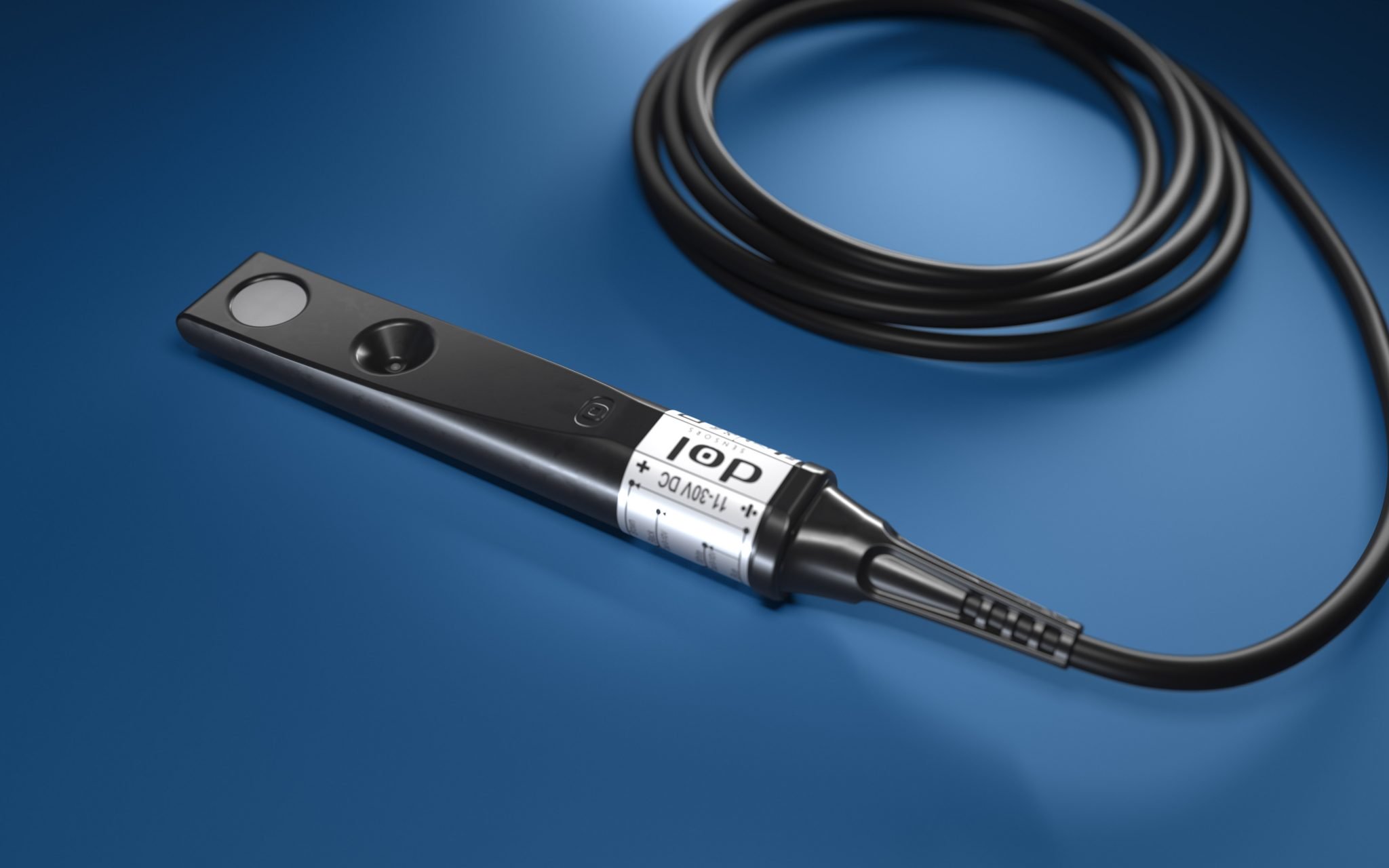

The DOL 104 is a high precision relative humidity sensor. The sensor has an analogue output with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. A protective cap is also available so that the sensor does not have to be removed when cleaning the barn.
Other models available on request:
140279 DOL 104 humidity sensor 1-3V
140273 DOL 104 humidity sensor 4-20mA
140276 DOL 104 Humidity sensor 0.5-3V Rotem 8C
TECHNICAL SPECIFICATIONS
- Measuring range 0 – 100% RH
- Accuracy 2% RH (40-85%), 3% RH (10-95%) at 0-40°C *
- Output signal 0.1V / % RH
- Supply voltage 11 – 30 V DC
- Supply current 12 mA no load 35 mA
- max load Load > 500Ω - < 10MΩ
- Recommended burden ≥ 100 kΩ
- Output current 20 mA (current limited)
- Output impedance < 1Ω
- Temperature, operation and storage - 40 °C - 60 °C
- IP classification IP 67
- Cable 2 m. 3 x 22 AWG / 0.34 mm2
- max. cable length/ 100 m 0.75 mm2 200 m 1.50 mm2
- After direct exposure to water and condensation, a period of time with less than 80% relative humidity is required for a correct measurement.
Other variants available:
- 0-5V 0.05V / %RH
- 0-3V 0.03V / %RH

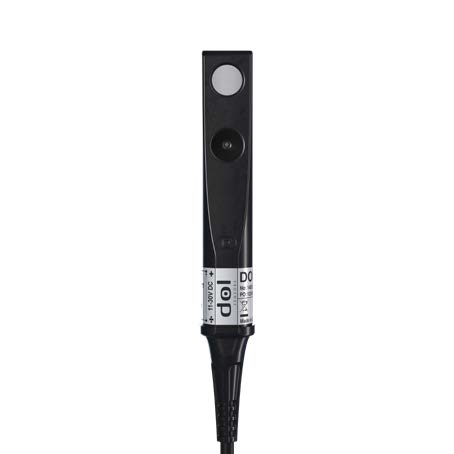

Similar to illustration
| Manufacturer item no.: | 140263 |
|---|---|
| Output signal: | 0-10 V |
| Supply voltage: | 11 - 30 V DC |
| Sensor type: | Luftfeuchtigkeit |
| Messbereich: | 0-100 % |
